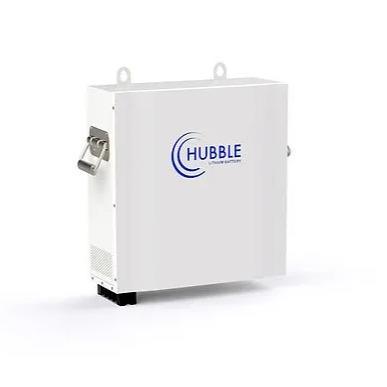

25.5V 2.7kWh Hubble Lithium AM4 Battery
• Advanced BMS with current limiting function
• CAN Bus, fully integrates and communicates with leading Inverter brands
• Excellent high temperature performance
• High Cycle Life and Service Life
• RIOT integration ready for cloud monitoring
• 1C High Performance Lithium battery
• High Energy Density and conversion efficiency
• Complete with integrated Battery Management System
• Compatible with most Inverters and chargers
• Low self discharge
• Easy wall mount or shelf rack installation
• Heavy duty side handles for easy handling and mounting on the wall
• Built in protection for over-charge, over-discharge & over-temperature
|
ITEM |
SPECIFICATION |
||
|
Model |
Hubble AM-4 |
||
|
Rated Capacity (5HR) |
100 Ah |
||
|
Voltage |
25 V |
||
|
Discharge Cutoff Voltage |
22.0 V |
||
|
Equilized Charge Voltage |
29 V |
||
|
Max. Continuous Charging Current |
100 A |
||
|
Max. Continuous Discharging Current |
100 A |
||
|
C Rating |
1.0 C |
||
|
Weight |
Approx. 21 Kg |
||
|
Display |
None |
||
|
Parallel |
Parallel connection up to 15 packs with full communications |
||
|
Dimensions (WxDxH) mm |
375mm x 147mm x 371mm |
||
|
Ports |
1x CAN-bus, 2x RS-485 Battery Link ports, 1x RS-232 |
||
|
Cells |
New Li-ion Prismatic cells |
||
|
Design Life |
+/- 15 Years |
||
|
Cycle Life @ 1°C |
+/- 3000 Cycles @ 100% DOD, Above 6000 cycles @ 50% DOD |
||
|
Certification |
CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015 |
||
|
Outer Package Material |
White bake lacquer steel case |
||
|
Operating Temperature |
Charging: 0 to +55°C |
Discharging: -10 to +55°C |
Storage: -10 to +55°C |
|
Protection |
Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting |
||
