Mecer 2400va 1800w 24v W/MPPT Inverter

SKU S404
Sold out
R 4,000.00 - R 4,000.00
R 4,000.00
R 4,000.00 - R 4,000.00
R 4,000.00

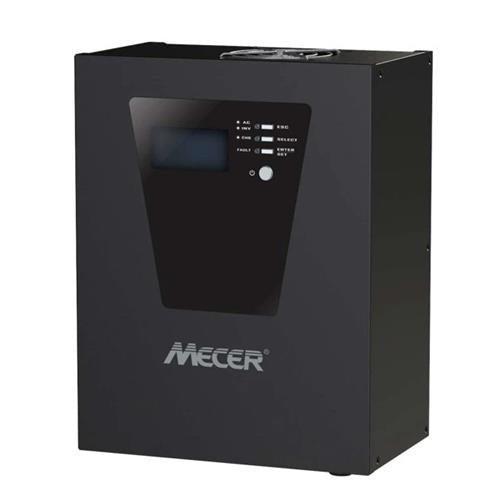

This simple Mecer 2.4kVA 1800W 24vDC Inverter with MPPT IVR-2400MPPT is designed to power your home appliances or precious 3C electronics. With built-in MPPT solar charger, it can convert solar power to battery power and provide continuous power to connected equipment during nighttime.

Features:
  • Simulated sinewave inverter
  • Wide input voltage range
  • 24VDC
  • Overload and short circuit protection
  • LCD display for comprehensive information
  • No Batteries included
Specifications:
  • Model: IVR-2400MPPT
  • Capacity: 2400VA/1800W
  • Power Factor: 0.75
  • Voltage: 220-240 VAC
  • Voltage Range: 90-280 VAC
  • Nominal Operating Frequency: 50/60Hz
  • Maximum Input Current: 13A
  • Nominal Output Voltage: 220-240 VAC
  • Voltage Regulation (Batt. Mode): +/-10%
  • Output Frequency Range: 50/60Hz
  • Nominal Output Current: 10.4 A
  • Inrush Current: 13 A
  • Maximum Output Fault Current: 13.6 A
  • Transfer Time: 20 ms
  • Typical Waveform: Simulated Sine Wave
  • Battery Voltage: 24 VDC
  • Maximum Battery Discharging Current: 90 A<
  • Floating Charge Voltage: 27,4 ± 1 VDC
  • CV Charging Voltage Lead Acid Battery: 28.6 VDC ±1 VDC
  • Lithium Battery: 29.2 ± 1 VDC
  • Cut Off Voltage: 21 VDC ± 1 VDC
  • Maximum AC Charging Current:10 A or 25 A

Whats in the box:
Cables are included to connect to the battery
1x cable to connect to a South African 3pin wall socket is included

Please note
Requires 2x 12V deep cycle battery
Connect RED cable to (+) on battery and BLACK cable to (-) on battery
